Power Dynamics PD812A

Power Dynamics PD812A

Gary Trotman Steelasophical uses Power Dynamics PD812A

Power Dynamics PD812A is a 12 ” singing plant with a total capacity of up to 1600W.

The set consists of a powered subwoofer, and a slender top array, including a height-adjustable intermediate pole which is firmly anchored by means of screw thread in the top and subwoofer.

Because of the built-in amplifier is set to close the simple and therefore also perfect for mobile applications where quick to mount and dismount, of course, is an absolute must.

Examples are of bands or singers which is then reduced, and bring again the installation after a performance. The connecting cable between the subwoofer and top with one another is of course included.

The amplifier Power Dynamics PD812A is a high power Class-D amplifier with a power output of up to 600W. Because of the Bi-Amp driver are separately driven, the 12 “woofer and the top with 8x 2” loudspeakers from the amplifier. This creates a balanced control with a very clear sound effect. Good deep bass plus a full mid and sparkling high. An overall picture of what low to high so true and that is extremely important in singing and live music. The special shape of the summit a perfect sound dispersion is obtained for a great listening experience.

Balanced PD812A can be controlled via XLR for a disturbance-free transmission of the signal.

In addition, a 6.3mm jack terminal and an RCA terminal provided so that connecting always succeed. Ideal for professional use.

The sturdy and robust Plywood housing with rubber coating making it entirely suitable for on-the-road applications, which makes the set ideal for bands and live performers. By means of handles the set can be easily moved.

Features

  • 800W BI-amplified array system
  • High-quality and high-efficiency class-D amplifier
  • Line array with 8x 2 “top speaker – 150W RMS
  • Subwoofer 12 “woofer – 450W RMS
  • Plywood with sturdy rubber coating
  • Scratch and impact resistant
  • Lightweight for easy transport
  • Balanced XLR, 6.3mm jack and RCA line input
  • Balanced XLR line output
  • Supplied with height-adjustable pole distance and cable

Specifications

  • Peak power: 1600W
  • RMS Power: 600W
    • Woofer: 12 “- 450W RMS
    • Top: 8x 2 “- 150W RMS
  • Frequency response: 35Hz – 20kHz
  • Crossover Frequency: 300Hz
  • Sensitivity: 103dB
  • Max SPL: 132dB
  • Voice Coil Woofer: 2 “

Dimensions and weight

  • Dimensions:
    • Subwoofer: 525 x 350 x 560mm
    • Top Array: 150 x 100 x 510mm
  • Weight (set): 25.2kg

Power Dynamics PD812A

Power Dynamics PD812A

Power Dynamics PD812A

Power Dynamics PD812A

Power Dynamics PD812A-Steelasophical
Power Dynamics PD812A back
Power Dynamics PD812A Bass back
Power Dynamics PD812A front
Power Dynamics PD812A top front
Power Dynamics PD812A TOP

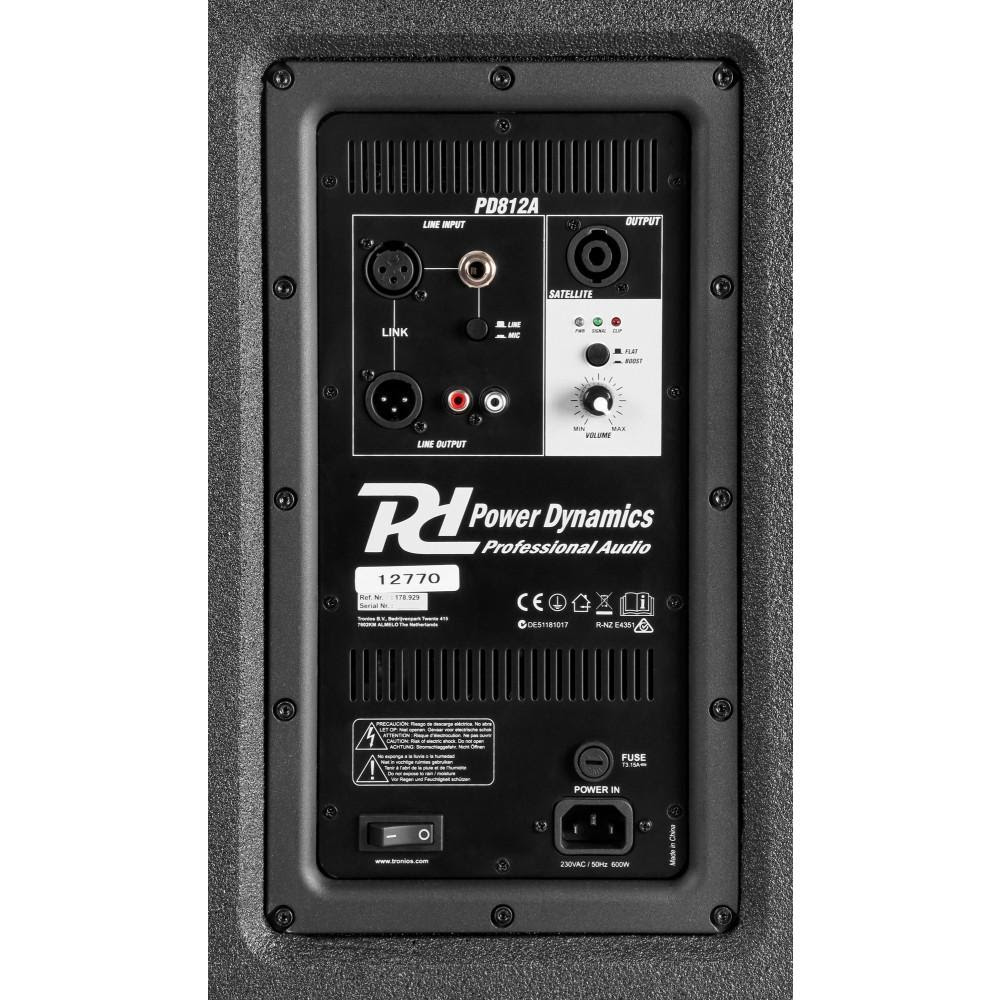

Power Dynamics PD812A rear panel sub

Power Dynamics PD812A
